Kobelco - 24100U1743F2
Kobelco - 24100U1743F2
Stock number: 200252
- Brand
- Kobelco
- Model (partnumber)
- 24100U1743F2
- Partnumber 1
- LS15V00003F4
- Extra info
- LS15V00003F4 - Assy; SK480-6E Show more
Details
Details
- Brand
- Kobelco
- Model (partnumber)
- 24100U1743F2
- Partnumber 1
- LS15V00003F4
- Extra info
- LS15V00003F4 - Assy; SK480-6E
- Overall condition
- Checked
- Parted from, or fits on brand
- Kobelco
- Parted from, or fits on model
- SK480
- Position A1
- 110 mm
- Motor attached
- No
- Position C1
- 430 mm
- Description
- Tracked excavator
- Position E1
- 620 mm
- Position D1
- 570 mm
- Complete or parts

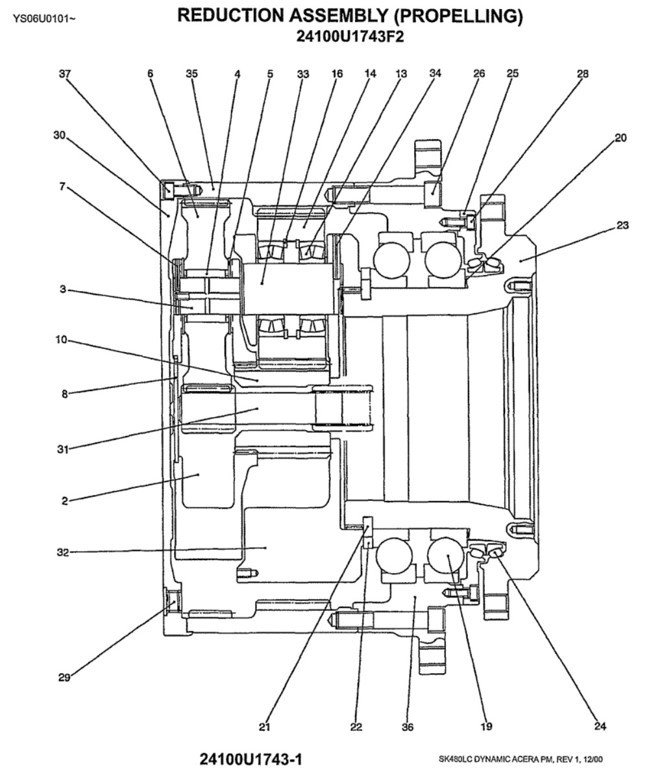

- Final drive
- Boltholes Position B1
- 24 Qty
- Sprocket present
- No
- Bolttype position B1
- M22
- Position B1
- 490 mm
- Bolttype position E1
- M24
- Brand
- Kobelco
- Boltholes position E1
- 24 Qty
